Bundle — Batch & Transaction

Couchbase FHIR CE supports FHIR Bundles to perform multiple operations in a single request. Endpoint (note: no resource type in the path):

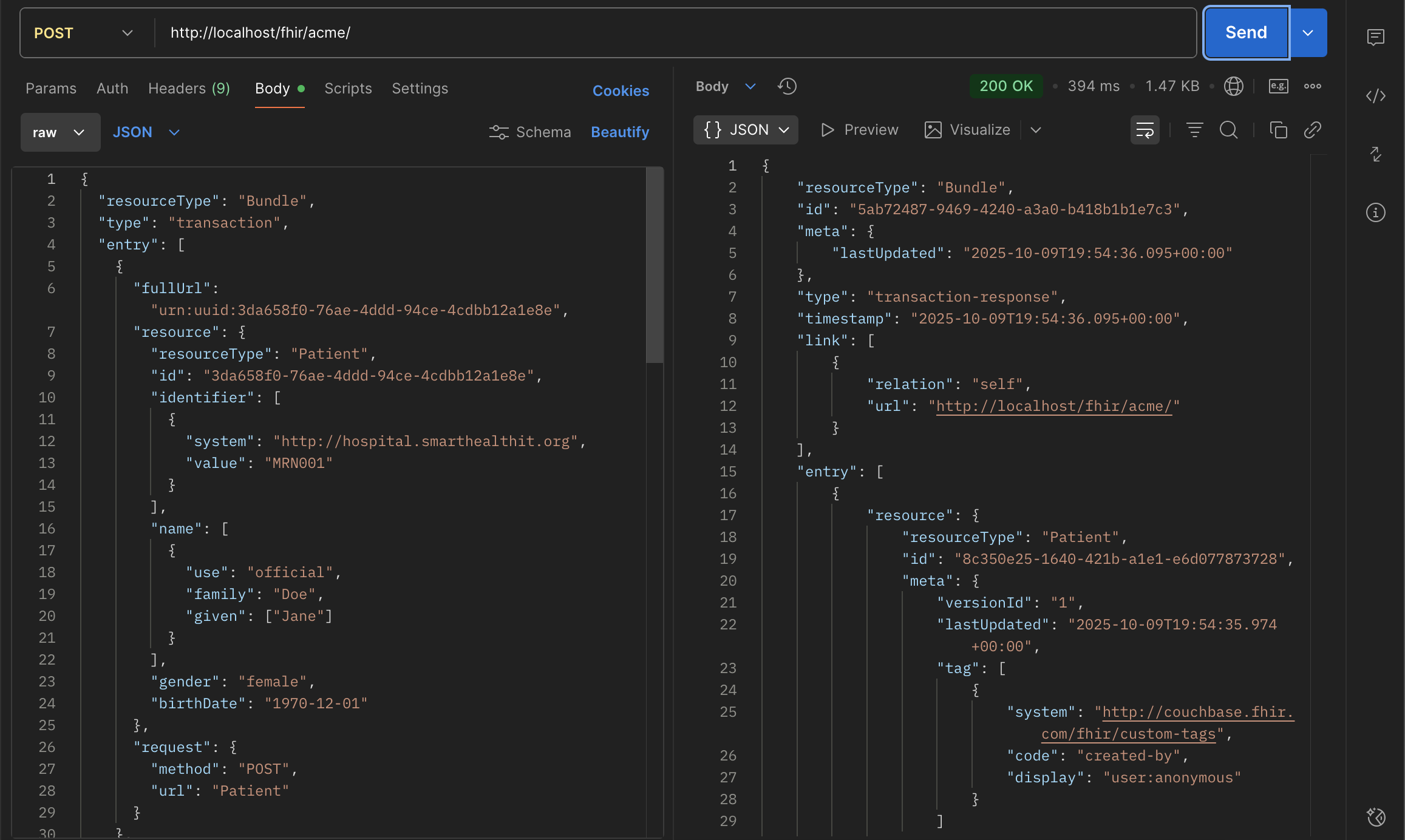

Example

POST /fhir/<bucket>/
e.g. POST http://localhost/fhir/acme/

JSON Body

{
  "resourceType": "Bundle",
  "type": "transaction",
  "entry": [
    {
      "fullUrl": "urn:uuid:3da658f0-76ae-4ddd-94ce-4cdbb12a1e8e",
      "resource": {
        "resourceType": "Patient",
        "id": "3da658f0-76ae-4ddd-94ce-4cdbb12a1e8e",
        "identifier": [
          {
            "system": "http://hospital.smarthealthit.org",
            "value": "MRN001"
          }
        ],
        "name": [
          {
            "use": "official",
            "family": "Doe",
            "given": ["Jane"]
          }
        ],
        "gender": "female",
        "birthDate": "1970-12-01"
      },
      "request": {
        "method": "POST",
        "url": "Patient"
      }
    },
    {
      "fullUrl": "urn:uuid:ad8085ce-fbf7-442b-99e5-f9f02e7dcd92",
      "resource": {
        "resourceType": "Observation",
        "status": "final",
        "category": [
          {
            "coding": [
              {
                "system": "http://terminology.hl7.org/CodeSystem/observation-category",
                "code": "vital-signs",
                "display": "Vital Signs"
              }
            ]
          }
        ],
        "code": {
          "coding": [
            {
              "system": "http://loinc.org",
              "code": "85354-9",
              "display": "Blood pressure panel with all children optional"
            }
          ]
        },
        "subject": {
          "reference": "urn:uuid:3da658f0-76ae-4ddd-94ce-4cdbb12a1e8e"
        },
        "effectiveDateTime": "2023-06-01T12:00:00Z",
        "component": [
          {
            "code": {
              "coding": [
                {
                  "system": "http://loinc.org",
                  "code": "8480-6",
                  "display": "Systolic blood pressure"
                }
              ]
            },
            "valueQuantity": {
              "value": 120,
              "unit": "mmHg"
            }
          },
          {
            "code": {
              "coding": [
                {
                  "system": "http://loinc.org",
                  "code": "8462-4",
                  "display": "Diastolic blood pressure"
                }
              ]
            },
            "valueQuantity": {
              "value": 80,
              "unit": "mmHg"
            }
          }
        ]
      },
      "request": {
        "method": "POST",
        "url": "Observation"
      }
    }
  ]
}

Response - 200 OK

{
  "resourceType": "Bundle",
  "id": "5ab72487-9469-4240-a3a0-b418b1b1e7c3",
  "meta": {
    "lastUpdated": "2025-10-09T19:54:36.095+00:00"
  },
  "type": "transaction-response",
  "timestamp": "2025-10-09T19:54:36.095+00:00",
  "link": [
    {
      "relation": "self",
      "url": "http://localhost/fhir/acme/"
    }
  ],
  "entry": [
    {
      "resource": {
        "resourceType": "Patient",
        "id": "8c350e25-1640-421b-a1e1-e6d077873728",
        "meta": {
          "versionId": "1",
          "lastUpdated": "2025-10-09T19:54:35.974+00:00",
          "tag": [
            {
              "system": "http://couchbase.fhir.com/fhir/custom-tags",
              "code": "created-by",
              "display": "user:anonymous"
            }
          ]
        },
        "identifier": [
          {
            "system": "http://hospital.smarthealthit.org",
            "value": "MRN001"
          }
        ],
        "name": [
          {
            "use": "official",
            "family": "Doe",
            "given": ["Jane"]
          }
        ],
        "gender": "female",
        "birthDate": "1970-12-01"
      },
      "response": {
        "status": "201 Created",
        "location": "Patient/8c350e25-1640-421b-a1e1-e6d077873728"
      }
    },
    {
      "resource": {
        "resourceType": "Observation",
        "id": "e00a7f2e-1a42-446b-ba5a-9f412afc4fe2",
        "meta": {
          "versionId": "1",
          "lastUpdated": "2025-10-09T19:54:36.050+00:00",
          "tag": [
            {
              "system": "http://couchbase.fhir.com/fhir/custom-tags",
              "code": "created-by",
              "display": "user:anonymous"
            }
          ]
        },
        "status": "final",
        "category": [
          {
            "coding": [
              {
                "system": "http://terminology.hl7.org/CodeSystem/observation-category",
                "code": "vital-signs",
                "display": "Vital Signs"
              }
            ]
          }
        ],
        "code": {
          "coding": [
            {
              "system": "http://loinc.org",
              "code": "85354-9",
              "display": "Blood pressure panel with all children optional"
            }
          ]
        },
        "subject": {
          "reference": "Patient/8c350e25-1640-421b-a1e1-e6d077873728"
        },
        "effectiveDateTime": "2023-06-01T12:00:00Z",
        "component": [
          {
            "code": {
              "coding": [
                {
                  "system": "http://loinc.org",
                  "code": "8480-6",
                  "display": "Systolic blood pressure"
                }
              ]
            },
            "valueQuantity": {
              "value": 120,
              "unit": "mmHg"
            }
          },
          {
            "code": {
              "coding": [
                {
                  "system": "http://loinc.org",
                  "code": "8462-4",
                  "display": "Diastolic blood pressure"
                }
              ]
            },
            "valueQuantity": {
              "value": 80,
              "unit": "mmHg"
            }
          }
        ]
      },
      "response": {
        "status": "201 Created",
        "location": "Observation/e00a7f2e-1a42-446b-ba5a-9f412afc4fe2"
      }
    }
  ]
}

Bundle Types

type: "transaction"

Atomic, all-or-nothing. The server processes the entries as a single unit:
If all succeed → commit.
If any fails → none are applied; the response includes the failure.

Response: type:

"transaction-response" with one entry.response per input entry.

type: "batch"

Non-atomic. Entries are executed independently; some may succeed while others fail.
Order is server-defined (no cross-entry guarantees).

Response: type:

"batch-response" with one entry.response per input entry.

Entry Anatomy

Each entry typically has:

fullUrl: a temporary identifier for this entry’s resource. Commonly a URN such as urn:uuid:guid used to link entries together before real IDs exist.
resource: the FHIR resource payload (for methods that send a body).
request: the operation to perform:
method: POST, PUT, PATCH, DELETE, or GET
url: relative interaction URL such as Patient, Patient/123, Observation?code=…, etc.

URN / fullUrl resolution

Within the same bundle, you can reference another entry’s fullUrl. During processing the server:

Creates the resource (assigning server ID for POST).
Builds a mapping from fullUrl → the final canonical reference (e.g., Patient/8c350e25-…).
Rewrites internal references to canonical form.

In our example, the Observation’s subject.reference changes from urn:uuid:3da6… → Patient/8c350e25-1640-421b-a1e1-e6d077873728.

Processing Model

For transaction bundles, Couchbase FHIR CE executes the entire bundle inside a single ACID transaction over Couchbase:
Collect & validate entries (FHIR R4 rules, plus US Core if enabled for the bucket).
If validation:
- Strict → any violation aborts the transaction.
- Lenient → warnings logged; proceed.
- Disabled → skip validation.
Resolve dependencies using fullUrl mapping and any conditional URLs (e.g., PUT Patient?identifier=…).
Apply each request in a safe order (e.g., create Patient before Observation that references it).
- POST: server assigns a new UUID id.
- PUT: preserves/sets the ID from the URL; creates or updates.
- PATCH: applies JSON Patch (RFC 6902).
- DELETE: soft-deletes (tombstone).
- GET: allowed in bundles; returns the matched resource in the response entry.

Versioning & audit

meta.versionId increments per write.
meta.lastUpdated set by server.
meta.tag set (created-by / updated-by).
Prior versions copied to Resources.Versions.

Commit / rollback

Transaction bundles: either everything commits or everything rolls back.
Batch bundles: no overall transaction; each entry stands alone.

Isolation & consistency

Transaction bundles run with ACID semantics across the participating KV/N1QL operations.
Practical effect: readers won’t see partial results; writers see a consistent snapshot of documents involved.
No READ-UNCOMMITTED.

FTS

FTS itself is not transactional; searches reflect the committed state once the transaction completes and the index refreshes.

Response Shape

Top-level Bundle with:

type: "transaction-response" or "batch-response"
entry[]: one per input, each with:
response.status (e.g., 201 Created, 200 OK, 204 No Content, 404 Not Found, 412 Precondition Failed)
response.location (canonical location for created/updated resources)
Optional resource (when Prefer: return=representation or when the interaction returns a body, e.g., GET)

Our sample shows:

Patient created → 201 Created, location Patient/id
Observation created → 201 Created, with subject rewritten to the new Patient ID

Conditionals inside Bundles

You can use conditional interactions within entries:

Conditional PUT: PUT Patient?identifier=system|value
- 1 match → replace; 0 → create; >1 → 412
Conditional PATCH: PATCH Observation?identifier=…
- 1 match → patch; 0 → 404; >1 → 412
Conditional DELETE / READ similarly follow FHIR rules.
- The server resolves conditionals as part of the transaction, so either all cross-references are fixed and applied, or none are.

Validation & Profiles

Base FHIR R4 validation always available.
If the bucket enables US Core 6.1.0, profile rules and ValueSet bindings are enforced per your Strict / Lenient / Disabled setting.
Failures in Strict abort a transaction bundle.

Best Practices

Prefer transaction when creating graph-connected resources (Patient + related Observations), so references are resolved atomically.
Use fullUrl: "urn:uuid:..." for intra-bundle linking; avoid guessing IDs.
For upserts, prefer conditional PUT with a unique identifier rather than name.
Keep bundles reasonable in size for performance (e.g., tens to low hundreds of entries).
For responses, add header Prefer: return=representation if you want the full created/updated resources echoed in each entry.resource.

Summary

Batch = independent operations, non-atomic.
Transaction = atomic ACID unit; reference rewriting, versioning, and validation all happen together.
fullUrl + URNs let you build self-contained graphs that the server resolves to canonical references in one step.
The endpoint is the bucket root (/fhir/bucket/), not a resource type.
Fully aligned with FHIR R4 semantics; US Core rules apply when enabled.
