Couchbase Docker Setup

Prerequisites​

Requirements
  • Docker should be installed and running
  • Port 8091 should be available for Couchbase Web Console

For detailed Docker installation instructions, please refer to: https://docs.couchbase.com/server/current/install/getting-started-docker.html

Install Couchbase​

Run the Couchbase Server container:

Start Couchbase Server
docker run -d --name couchbase -p 8091-8096:8091-8096 -p 11210-11211:11210-11211 couchbase

Configure Couchbase​

Access the Couchbase Web Console at: http://localhost:8091

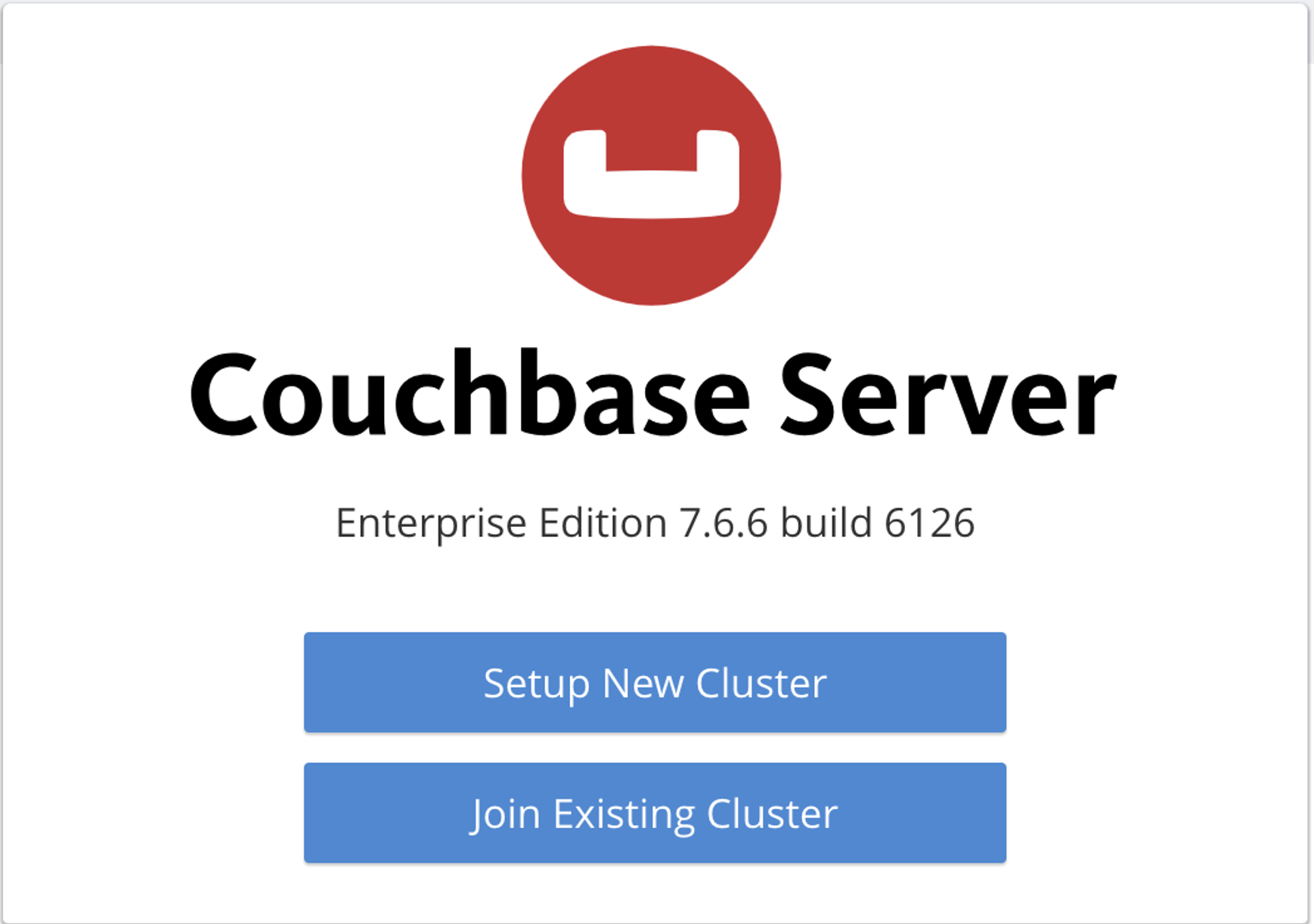

Setup Cluster​

Setup Cluster

Click Setup New Cluster to begin the configuration process.

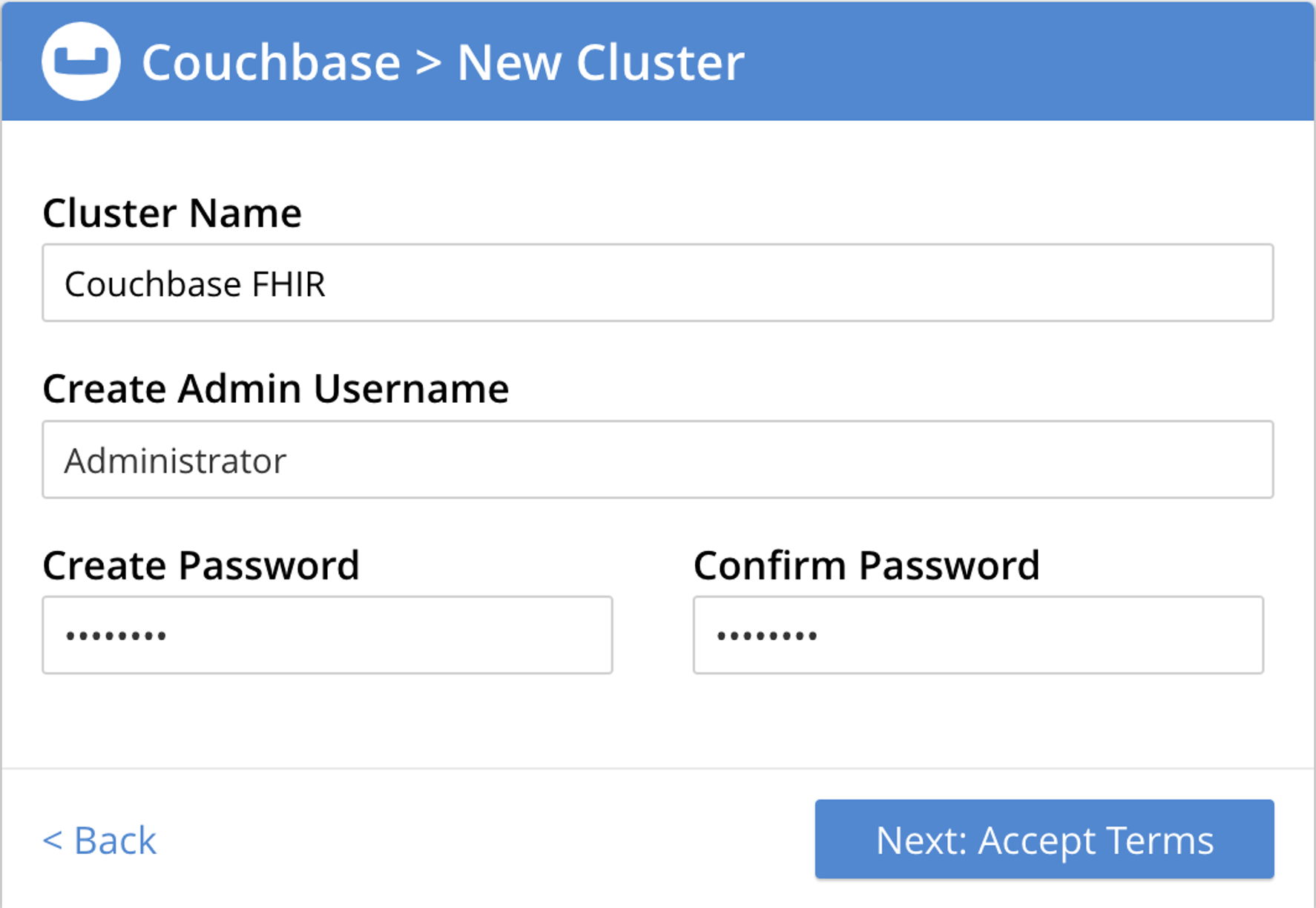

Create your access credentials​

Create Access Credentials
Cluster Configuration
  • Cluster Name: You can name the cluster as per your choice (e.g., "FHIR-Cluster")
  • Username: Administrator username for cluster access
  • Password: Choose a strong password - Note this down as you will be using it later when configuring FHIR

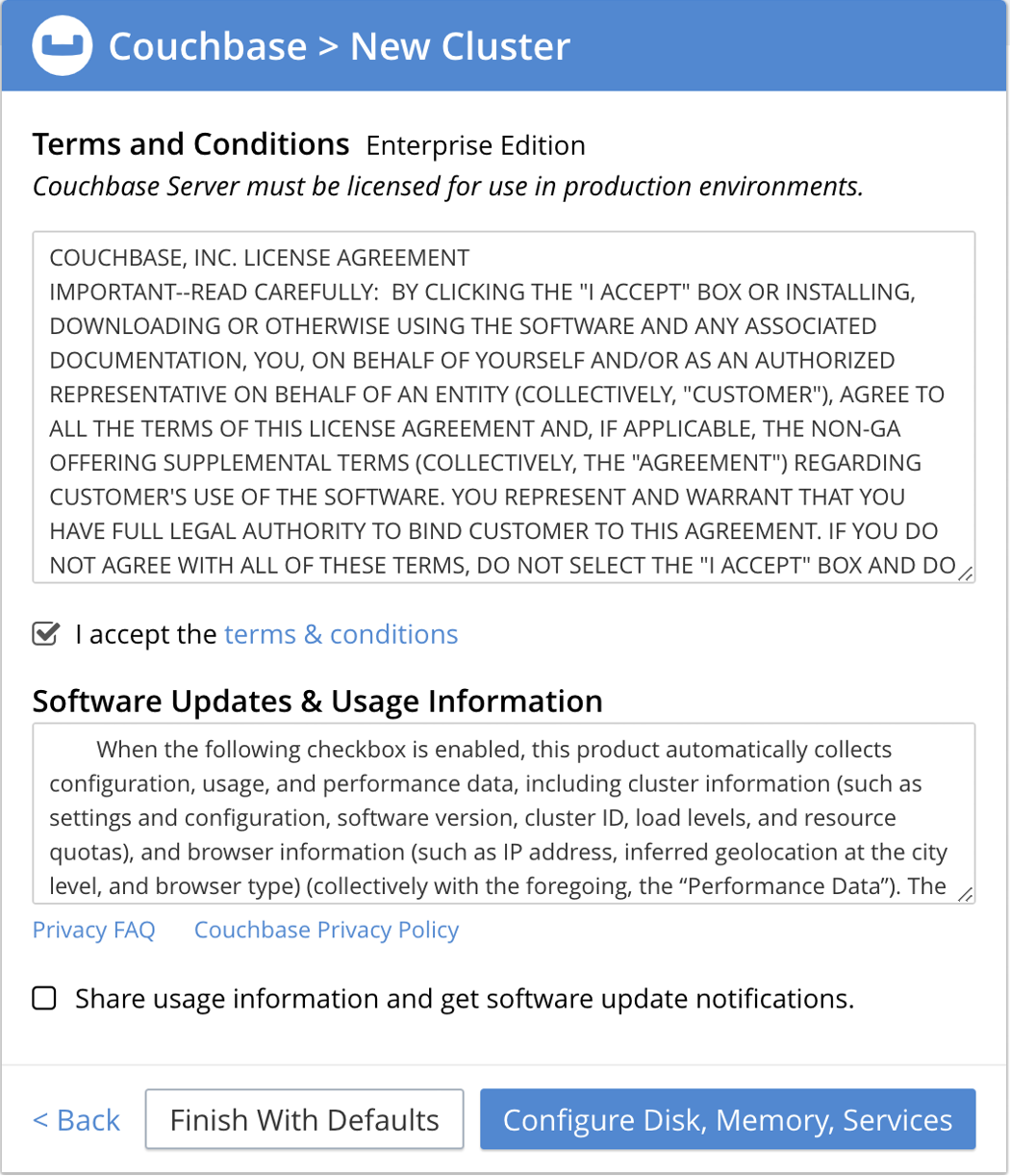

Configure Disk, Memory, Services​

Configure Disk, Memory, Services
Important

Do not finish with defaults! Instead, choose the Configure option to properly configure the services for FHIR usage.

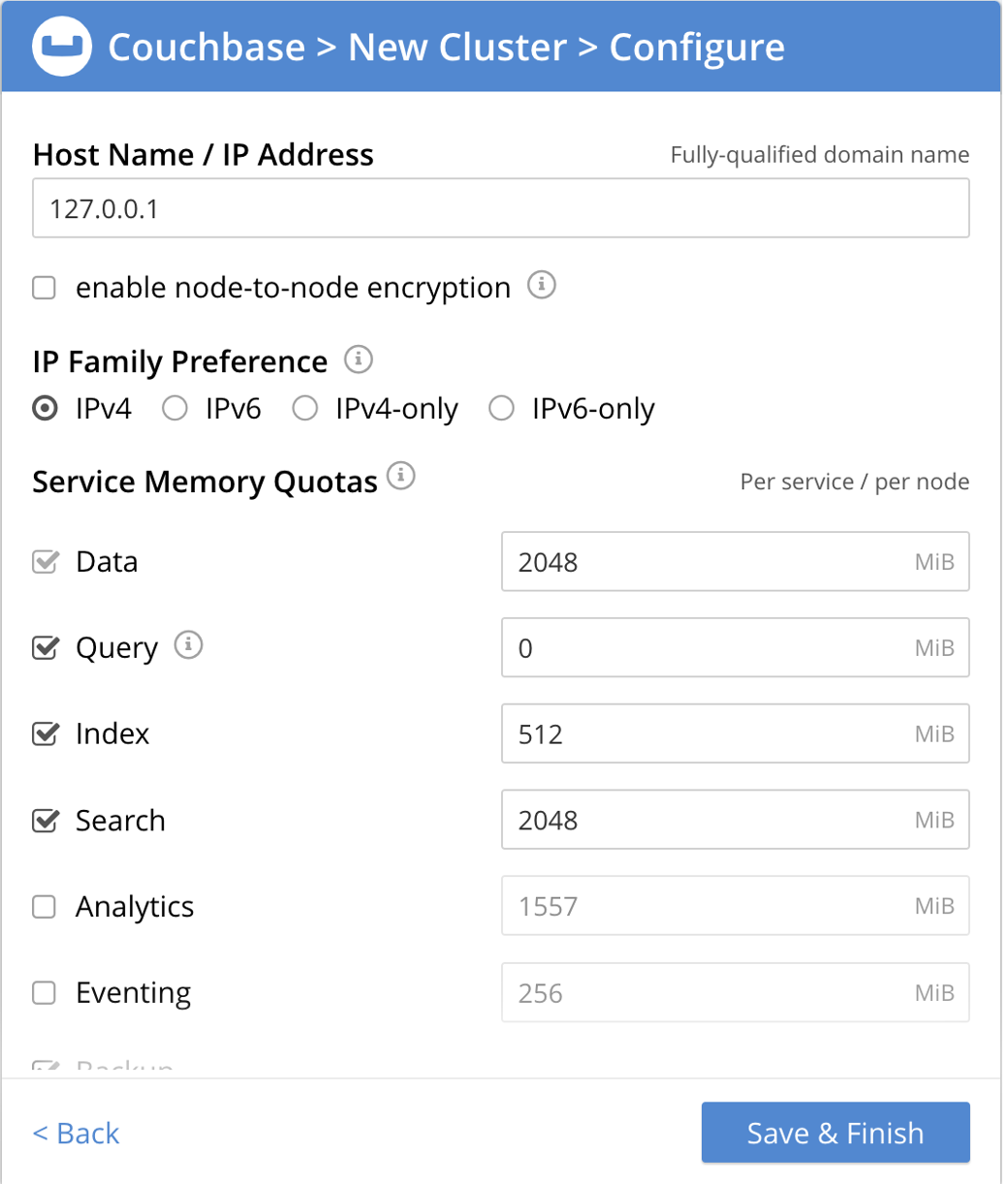

Set Services Quotas​

Set Services Quotas

Configure the services specifically for FHIR usage:

FHIR Service Configuration

Node Settings:

  • Node IP: Leave as 127.0.0.1 (default)

Required Services for FHIR:

  • Data Service - Core document storage
  • Query Service - N1QL queries for FHIR operations
  • Index Service - Primary indexes
  • Search Service - Full-text search capabilities

Memory Allocation:

  • Query Service: Set to 0 (unlimited)
  • Data & Search: Allocate same size (e.g., 1024 MB each)
  • Index Service: Minimal allocation (e.g., 256 MB) - FHIR does not use GSI indexes heavily
Service Selection

FHIR CE primarily uses Data, Query, Index, and Search services. Other services like Analytics and Eventing are not required for basic FHIR functionality.

FHIR Tenant Configuration​

Create the FHIR Bucket​

Create Access Credentials

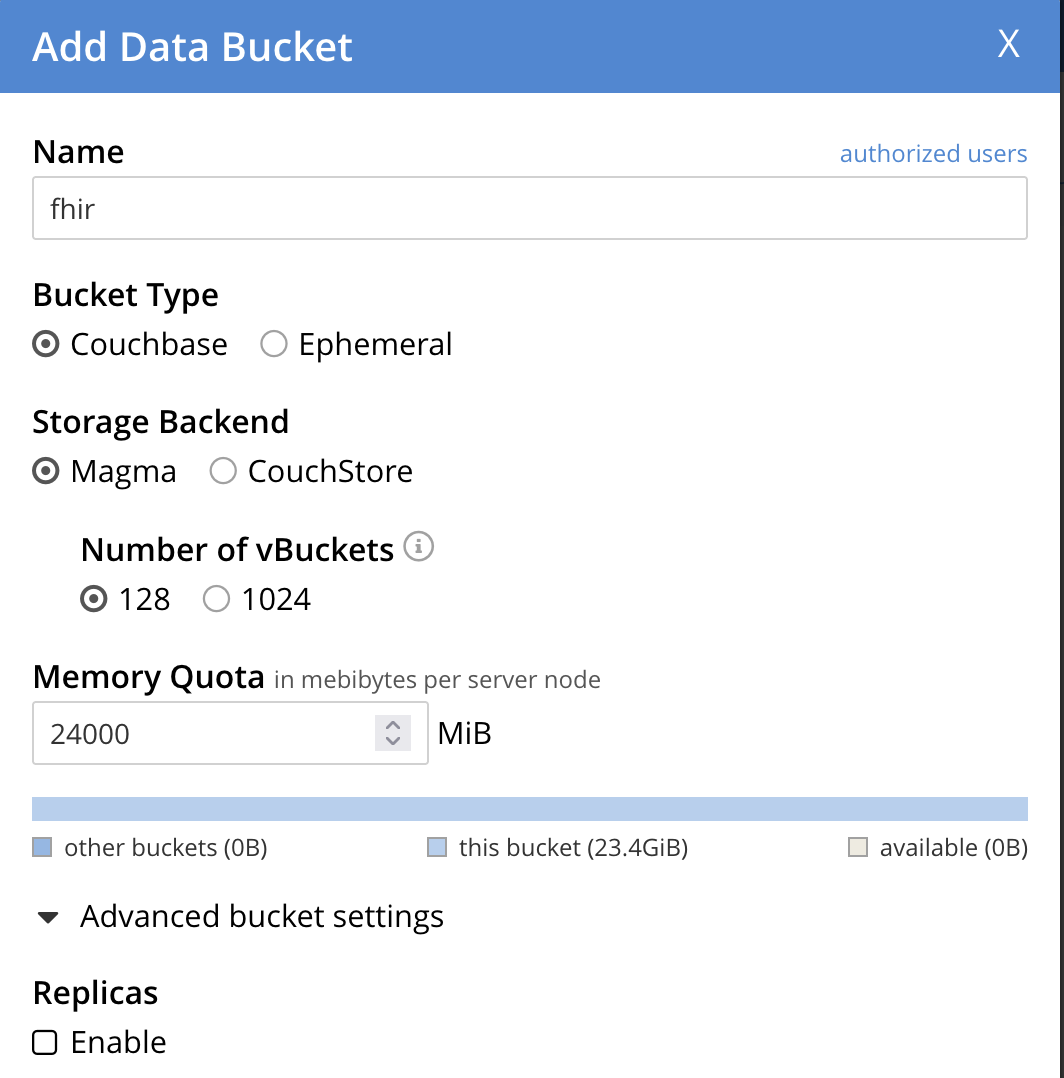

Configure your FHIR bucket:

Bucket Configuration Guidelines:

  • Bucket Name: fhir this is fixed
  • Memory Quota: Allocate based on your expected data volume
  • Bucket Type: Keep as Couchbase (default)
  • Replicas: Uncheck (single node)
  • Compression: Enabled by default for better storage efficiency

Recommended Configuration:

Bucket Name: fhir
Memory Quota: 1 GB
Durability: Majority
Compression: Enabled

Perfect for development, testing, and proof-of-concept deployments.

Connection Information​

After completing the setup, you'll need these details for your FHIR CE configuration:

Connection String for FHIR CE

When configuring FHIR CE, use your EC2 instance's connection details (example):

connection:
  connectionString: "host.docker.internal"
  username: "Administrator"
  password: "password"
  serverType: "Server"
  sslEnabled: false
Next Steps

Congratulations! Your Capella cluster is ready. Now you can install and configure FHIR CE to connect to this managed Couchbase instance.
